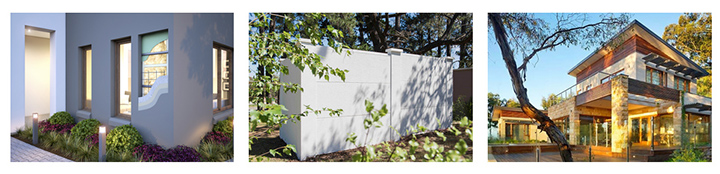

Hebel PowerPanelXL external wall system has been specifically developed to go up fast.

The system consists of 75mm thick, steel-reinforced PowerPanelXL panels, fixed vertically to horizontal top hats attached to the load bearing frame.

PowerPanelXL has been developed so it's 20% lighter than previous systems while maintaining its structural integrity. This lightweight panel, combined with the perforated steel top hat fixing system, speeds up installation with a whole lot less fatigue.

The PowerPanelXL system:

  • is much faster than laying bricks - two people can install up to 150m2 in three days depending on site conditions
  • is easy to grip, lift and move with less wear and tear on the body
  • is non-combustible with an FRL of 180/180/180
  • has outstanding thermal and acoustic insulation qualities, increasing levels of comfort and saving on energy heating and cooling costs
  • allows design patterns to be easily machined into the panels.

PowerPanel XL - Internal & external walls
*1200x600x75 SQ1M0 (standard density)
*1800x600x75 SQ1M0 (standard density)
2400x600x75 SQ1M0
2550x600x75 SQ1M0
2700x600x75 SQ1M0
2800x600x75 SQ1M0
2850x600x75 SQ1M0
3000x600x75 SQ1M0
3300x600x75 SQ1M0

PowerPanel XL - Made to Length in 5mm increments
2400 - 3300 600x75 Made to length PowerPanel XL 1M
*STD = Standard Density PowerPanel; XL = PowerPanel XL lighter density; 1M = Single Mesh; 0 = No Bevel
Note: All Made to Length panels are: Made to Confirmed Order Only – Minimum Quantities apply – lead times apply


For all brochures and technical information download brochures below


For more information please call 07 5535 3111
