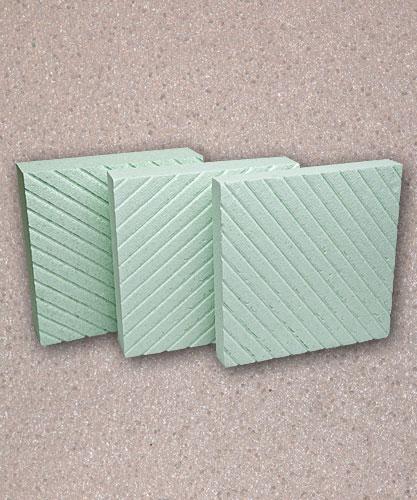

Showing unique, 'Registered Design Certified' diagonal grooving system – Advantages better key for rendered surface, in addition to allowing the inner surface to breath against the sarking membrane.
NRG Greenboard™40mm – 60mm – 75mm - 100mm
NRG EPS Battens
Application:
NRG CR (Cavity Release)
- NRG 35 x 15 x 1200mm Batten
- NRG 35 x 25 x 1200mm Batten.
- (See 'NRG CR' Table 1.0 )

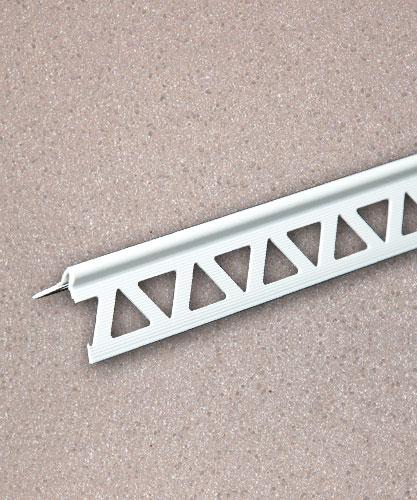

External PVC Bead
Application:
- External corners
- Option, window and door reveals (External corners)
Available in 3.5mm and 6mm render system, at 3m lengths
UV STABILISED

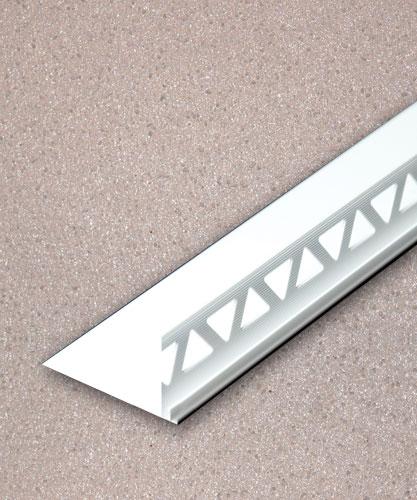

Reveal Bead 40mm - 60mm - 75mm
Application:
- Window Reveals.
- Base edge of cladding.
- Control joints.
Available in 3.5mm and 6mm render systems at 3m lengths.
UV STABILISED

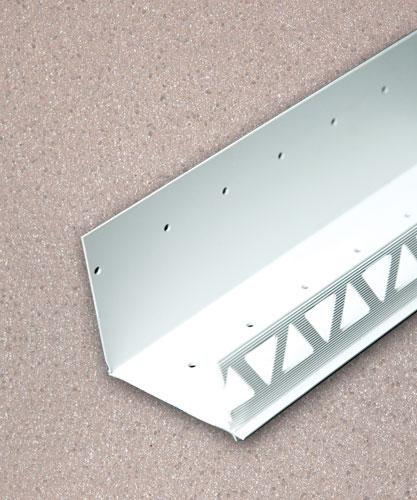

Starter Bead 40mm - 60mm - 75mm - 100mm (Cavity Release)
Application:
- Concrete slab, rebate base starter bead.
- Timber floor: NRG base bead.
- Over lower roof base bead.
Available in 3.5mm and 6mm render systems at 3m lengths
UV STABILISED

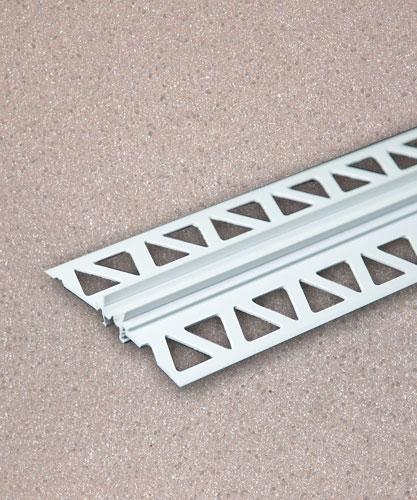

Expansion Joint Bead
Application:
- Horizontal control joints.
- Vertical control joints.
- Sunhood drip groove.
Available in 3.5mm and 6mm render systems at 3m lengths
UV STABILISED

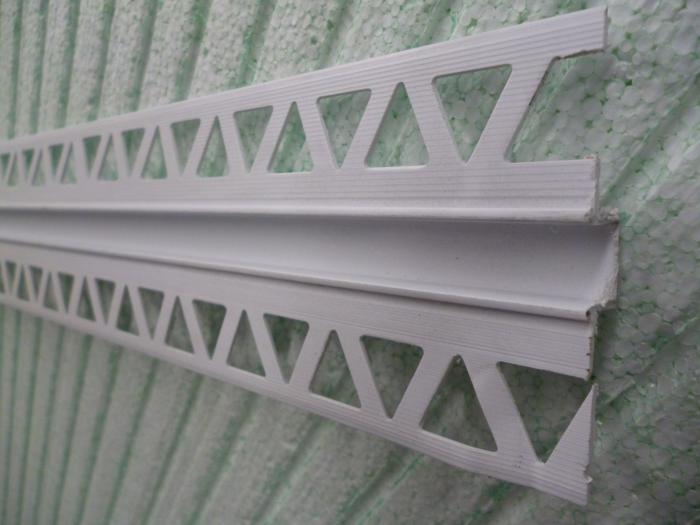

NRG PVC Feature Bead
Application:
- Feature Greenboard Recesses.
- Horizontal and Vertical.
- Available as 3.5mm and 6mm render systems, at 3m lengths.
- (See 'NRG Feature Panel')
UV Stablised.
Bostik PVC Primer 5077
Application:
PIVOTAL STEP: Adhesion of polyurethane UV stablised sealant, to all window/door joinery, relies heavily on this procedure. Failure to impliment this primer, prior to sealing, will result in inferior trade practice. Resulting in possible polyurethane breakdown. (See page 11 of NRG Specification Guide)

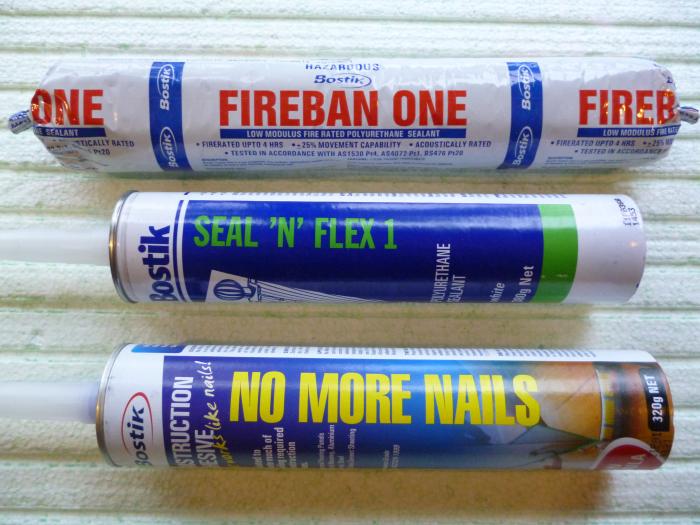

Adhesives & Sealant
- Bostik Fireban One: Fire rated Polyurethane Sealant.
- Bostik Seal'n Flex: Polyurethane UV Stablised Sealant.
- Bostik Adhesive: 'No more nails' (See page 11 of NRG Specification Guide)

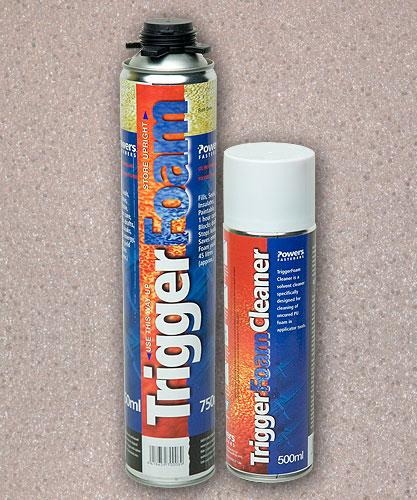

Foam Adhesives
Application:
- Installation of both Sunhoods & Blades.
- Larger hole fillers.
- Masonary assist adhesion.
Powers – Expanded Trigger Foam
Power(s) Foam Cleaner(s)x

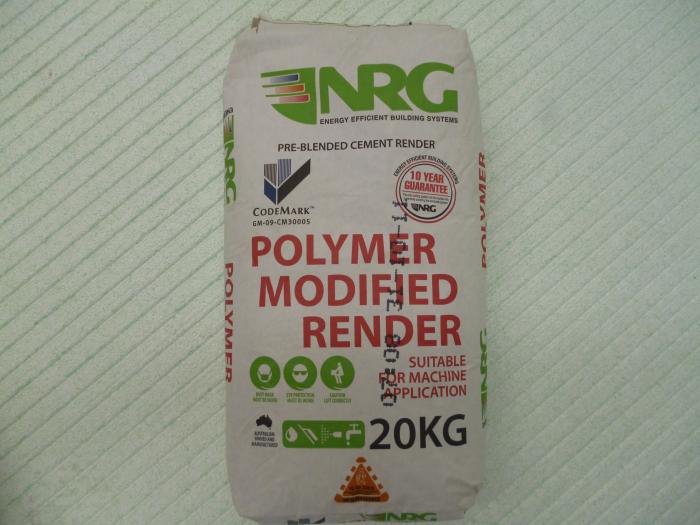

NRG Greenboard Polymer Modified Render
- 1st Coat application, together with NRG Fibreglass Mesh.
- 2nd Coat application.
Sunhood & Blades:
Mechanical Fixings:
- Galvanised Brackets.
- Coach Screws (Timber).
- Anchor Bolts (Masonry).
- Purlin Bolts (Steel).
(See specification guide)
NRG Acrylic Texture.
Application:
- 3rd Coat (Flat plastic float finish).
- Apply as final acrylic coating, over polymer modified render.
- Minimum cure time 48hrs, before paint applied finishes.

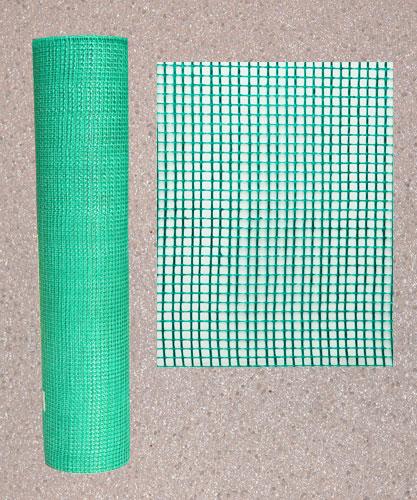

NRG Greenbaord™ Mesh
Application:
- Reinforced, alkali resistant, fibreglass 160g/m mesh.
- Lightly trowelled into 1st Polymer render coat.
WATERPROOF MEMBRANE
Application:
- NRG Sunhoods.
- Post render, x 2 Coats.
- Pre-paint application.
Select UV Stablised product, made to adhere to cementuous based material.

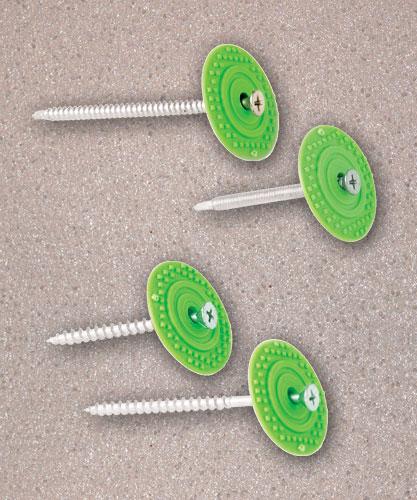

Stud Fixing & Washers
Timber Fixing and Metal Fixings
• N.B. Screws are to be Galvanised or Treated (Class 3)
• All NRG PVC Washers and Fixings are required at 300mm
• Maximum centres - Refer to Page 9 DWG 1.0
• Extreme environments - consideration should be given to the use of T316 Stainless Steel Fixings
| NRG Greenboard™ | Timber Framing Treated CSK Ribbed Head | Steel Framing Treated CSK Drill Point |
|---|---|---|
| 40mm | 10.8 x 65mm | 55mm |
| 60mm | 10.8 x 100mm | 75mm |
| 75mm | 10.8 x 100mm | 90mm |
| 100mm | 10.8 x 125mm | 125mm |

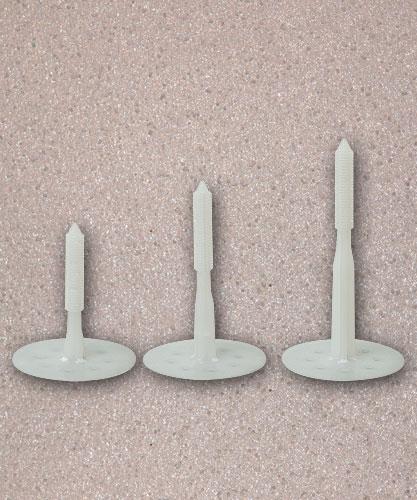

Masonry Fixings
a simple but effective method of fixing Greenboard™ to masonry surfaces.
| NRG Greenboard™ |
Hilti™ IDP Polypropylene Anchors |
Hilti™ IDP Anchors Maximum Fixing Centers |
|---|---|---|
| 40mm | 70mm | Refer:- iv) above for spacing details |
| 60mm | 90mm | |
| 75mm | 110mm |
